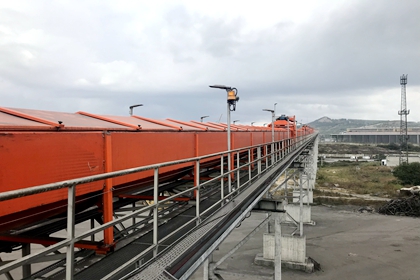

The air cushion belt conveyor, is also developed for long distance, high capacity and continuous operation. Good air closing system and low energy consumption bring air cushion to particularly competitive in bulk material conveying.
|
Type |
Air cushion belt conveyor |
|
Typical application |

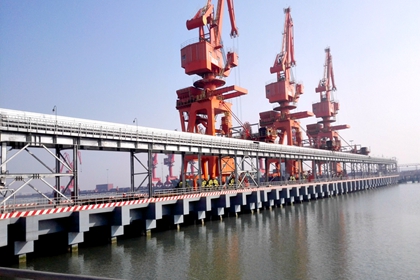

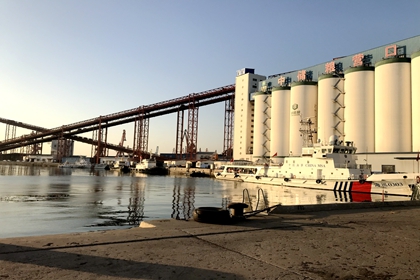

Silo and port facilities, silo, reception and delivery facilities for processing plants ( rice, grain, animal feed and oil mills, etc.) |
|
Throughput (0.75 t/m3) |
Up to 2,000 t/h |
|
Length |
Up to 600 m |
|
Inclination |
Up to Max. 13° |
|
Belt width |
Up to 2,200 mm |
|
Available material |
Mild steel |
|
Surface |
Powder-coated or galvanized |
